Implementing UML state machine using Step Functions

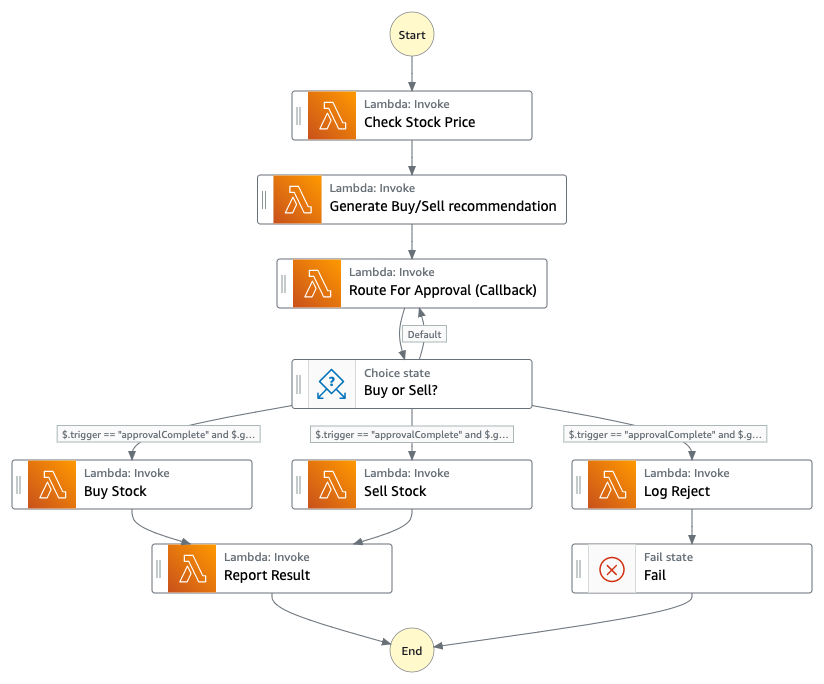

This workflow implements a UML state machine that models the behavior of a buy-sell stock order.
It demonstrates how a Step Functions workflow implements UML state activities, event dispatch, guards, transition activities, fail states, and completion transitions.
See the GitHub repo for additional examples showing hierarchical and orthogonal states, cancellation events, internal transitions, transition to history, and using an event loop for complex flow.
< Back to all workflows
Clone repo
git clone https://github.com/aws-samples/step-functions-workflows-collection/tree/main/uml-statemachine/cd step-functions-workflows-collection/uml-statemachine
Deploy
sam deploy --guided
Testing
See the GitHub repo for detailed testing instructions.
Cleanup
1. Delete the stack:
sam delete.Additional resources
